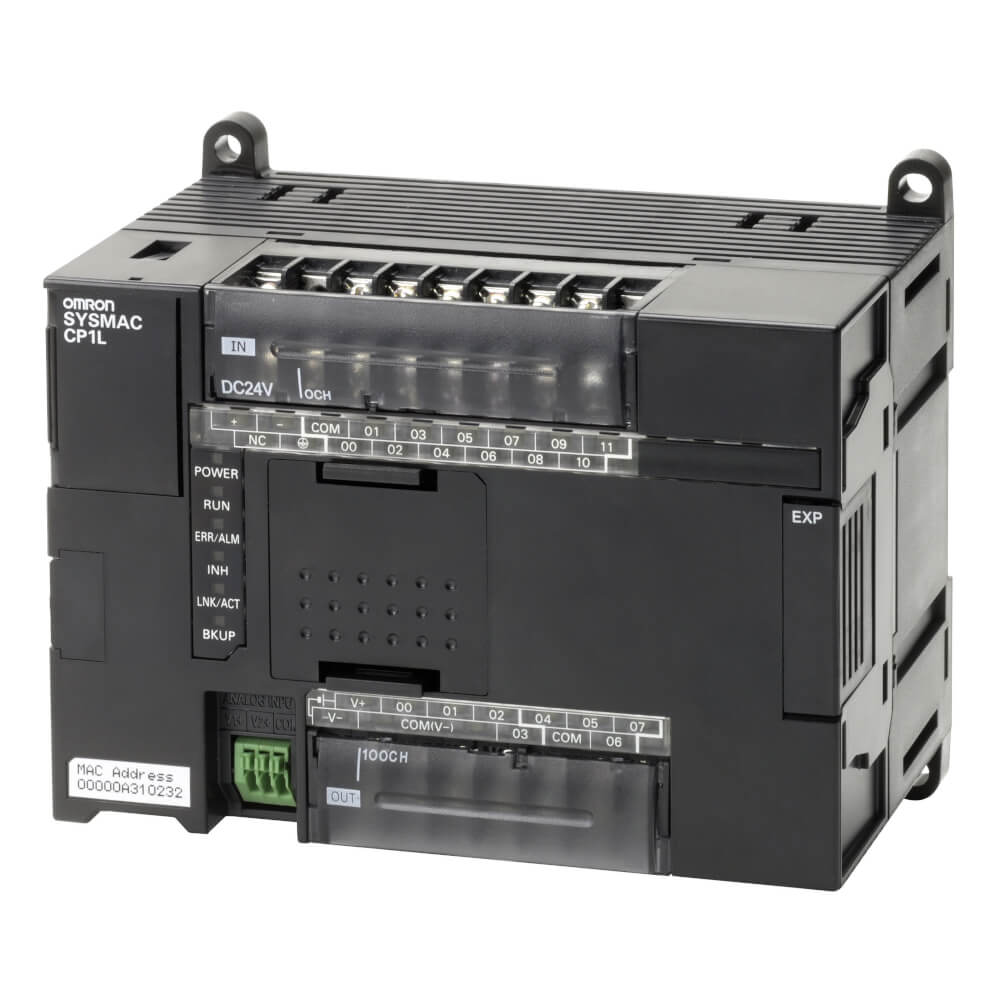

OMRON CP1L-EM30DT1-D PLC

OMRON CP1L-EM30DT1-D PLC COMPACT
PLC, 24 VDC power supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 2 x analog inputs, 10K step program + 32K word data memory, 1 x Ethernet port

OMRON CP1L-EM30DT1-D is a variant of the CP1L series Programmable Logic Controllers (PLCs) that is similar to the CP1L-EM30DT-D but has certain differences in terms of I/O configuration and functionality. Here is an overview of the CP1L-EM30DT1-D:

Key Features:
Model: CP1L-EM30DT1-D
I/O Points:
Digital Inputs: 18 (DC)
Digital Outputs: 12 (Transistor)
CPU Unit: Integrated CPU with onboard I/O designed for compact control solutions.
Power Supply: 24V DC
Differences from CP1L-EM30DT-D:
Output Type: The "T1" in the model number typically indicates a difference in output type or configuration, but in this case it refers to transistor output, similar to the CP1L-EM30DT-D.
Communication:
Built-in Ethernet:
Equipped with an Ethernet port for network communication.
Modbus, facilitating communication with other Modbus compatible devices Supports TCP/IP.
Ethernet connectivity enables remote programming, monitoring and integration into wider automation networks.
Programming:
Programming Software:
Programmed using OMRON’s CX-Programmer, part of the CX-One software suite.
Ladder logic is the primary programming language widely used in industrial automation.
Performance features:
High-Speed Counters: Can handle high-speed inputs, suitable for tasks requiring precise counting, such as motion control or production line monitoring.
Pulse Outputs: Can be used to control devices such as stepper motors or servos, required for applications requiring accurate position control.
Timers and Counters: Multiple timers and counters are available, providing flexibility in control logic design.
Data Memory: Non-volatile memory to retain programs and data even after power loss.
Expansion:
Expansion Modules:
Additional Supports I/O modules.
Options include analog input/output modules, additional digital I/Os, and dedicated communication modules.
Application:
Factory Automation: Suitable for controlling small to medium-sized machines, including packaging systems and conveyor operations.
Building Automation: Ideal for controlling HVAC systems, lighting, and access control.
Process Control: Can be used in processes that require repetitive control, such as batching, mixing, or dosing.
Physical characteristics:
Compact Design: Designed to fit into tight spaces, making it suitable for installations where space is limited.
Mounting: Typically mounted on a DIN rail inside industrial control panels.
Additional features:
PID Control: Provides advanced control capabilities to maintain desired levels in processes such as temperature, pressure, or flow.
Built-in Functions: Includes functions such as arithmetic operations, data logging, and communication capabilities, making it very useful for a variety of automation tasks makes it versatile.
This model, like the other models in the CP1L series, offers a robust solution for a wide range of automation tasks, with the added advantage of Ethernet connectivity for easy integration and remote management. If you need more specific information or have specific questions, do not hesitate to ask!
