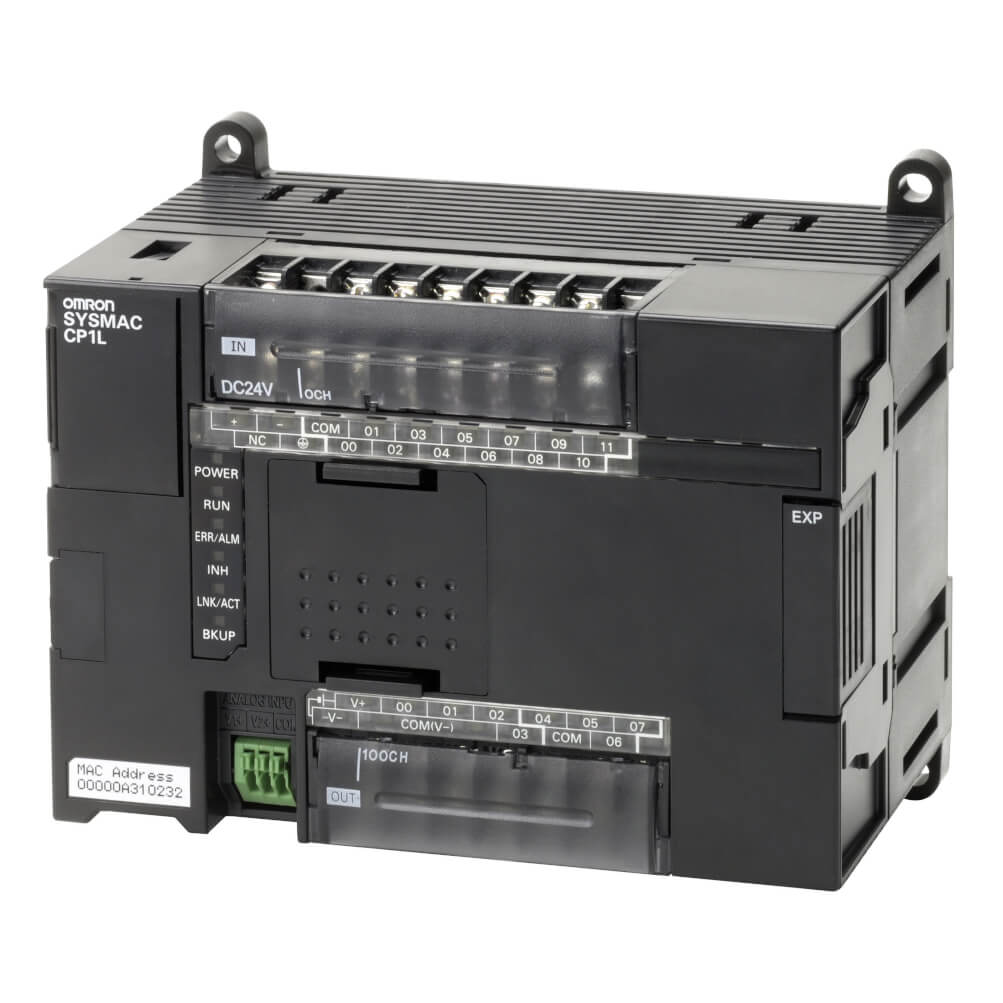

OMRON CP1L-EM30DT-D PLC
OMRON CP1L-EM30DT-D PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x NPN outputs 0.3 A, 2 x analog inputs, 10K step program + 32K word data memory, 1 x Ethernet port
OMRON CP1L-EM30DT-D is a Programmable Logic Controller (PLC) from OMRON’s CP1L series designed for a variety of automation and control applications
Main Features: I/O Configuration: 18 digital inputs and 12 digital transistor outputs. I/O expandable with additional modules if required.
Communication: Built-in Ethernet port for network communication and remote access. Supports Modbus TCP/IP for easy integration with other devices.
Programming: Compatible with OMRON’s CX-Programmer software, part of the CX-One automation suite. Supports ladder logic programming, common in industrial automation.
Performance: Fast processing speed suitable for real-time control applications. Can efficiently handle small to medium-sized automation tasks. Compact size:
Designed to be compact, making it suitable for installations with space constraints.
Special Functions: Advanced control features such as PID control, high-speed counters, and pulse outputs. Suitable for applications such as conveyor systems, packaging machines and other automated machines.
Application:
CP1L-EM30DT-D is ideal for controlling small and medium-sized machines, factory automation and process control systems where reliable and fast automation is required.
If you need more detailed information or details about programming or connection, feel free to ask!
Technical Specifications
150
| Supply voltage type | DC |
| Number of digital inputs | 18 |
| Input type | PNP/NPN |
| Number of digital outputs | 12 |
| Output type | NPN |
| Program capacity | 20 thousand steps |
| Data memory capacity | 32 thousand words |
| Logic execution time | 0.55 µs |
| Communication port(s) | Ethernet TCP/IP |
| Number of Ethernet ports | 1 |
| Number of USB ports | 0 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Encoder input channels number | 4 |
| Maximum encoder input frequency | 100 kHz |
| Maximum number of PTP axes | 2 |
| Maximum pulse output frequency | 100 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real time clock | |
| Analog option cards | |
| Maximum analog Number of I/O channels | 34 |
| Maximum number of local I/O points | |
| Maximum number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 130 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpackaged) | 455 gr |
